Through bolt anchor Atlantis ETA OPT 1

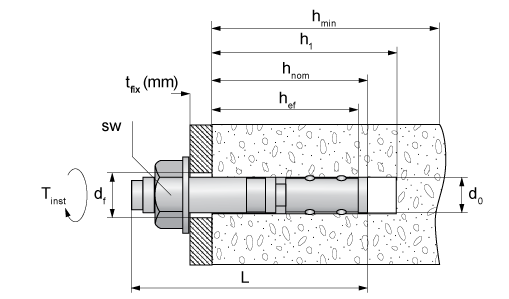

Pin expanders, also known as expander bolts or concrete expanders, are used for fastening in concrete. The expanders are installed in pre-drilled holes according to the illustrations below. Our pin expanders have a Atlantis finish which gives a smoother finish compared to hot-dip galvanising. This in turn makes it much easier to fit the nut.
Contact us for ETA when dimensioning the respective product. Others designs on request.
Fire resistance ETA
TC 3025-10
0809-CPR-1078
| Abbreviation | Explanation |
| d0 | Drill diameter |
| df | Clearance hole diameter Ø |
| SW | Width across flats |
| h1 | Min. drill depth |
| hnom | Min. montagedjup |
| hmin | Min. concrete thickness |
| hef | Effective installation depth |
| tfix | Max. installation thickness |
| Tinst | Tightening torque |
| Scr | Characteristic spacing |
| Smin | Minimum spacing |
| Ccr | Characteristic edge distance |
| Cmin | Minimum edge distance |
| d1 | 2,3 / 2,3 | 7,5 /7,5 | 9,3 / 9,5 | 8,4 / 8,1 | 10,3 / 10,8 | 11,3 /12,4 | k max ISO/DIN | 1,3 / 1,1 | 1,7 / 1,7 | 2,35 / 2,1 | 7,3 / 6,8 | 2,6 / 2,5 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| f~ | 8 | 15 | 100 | 60 | 55 | 48 | 144 | 72 | 50 | 50 | 9 | 13 |
| m~ | 10 | 40 | 120 | 75 | 68 | 60 | 180 | 90 | 60 | 60 | 12 | 17 |
| d2max ISO/DIN | 12 | 60 | 140 | 85 | 80 | 70 | 210 | 105 | 70 | 70 | 14 | 19 |
| 4,3 / 3,8 | 16 | 100 | 170 | 105 | 97 | 85 | 255 | 128 | 128 | 128 | 18 | 24 |
| 5,5 / 5,5 | 20 | 200 | 200 | 125 | 114 | 100 | 300 | 150 | 150 | 150 | 22 | 30 |
