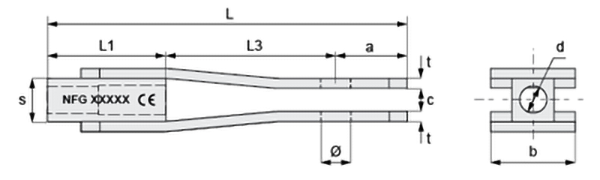

Double-sided Fork

Our double-sided fork belonging to our tension rod system is both CE-marked and BASTA registered.
Our tension rod fork is supplied including the locking bolt. Advantageously, the fork is used together with our welding plates / connection lugs.

During installation, the rod is screwed in for the entire length of the sleeve.
Minimum screw-in length is 1.5 x d after the rod's length adjustment.

Hot-dip galvanizing: ISO 10684: 2004
Mechanical properties: ISO 898-2:2022
Thread tolerance: ISO fit
Impact toughness: 27J at -20°C
ID marked for enhanced traceability.
Delivered with a locking bolt.

For the design load of the Tension Rod System, see the handling sheet.

*Refers to the smaller dimension of the locking bolt for fork sizes M24 and M30.
