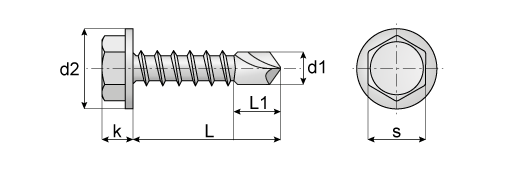

Self drilling screw hexagon with collar ISO 15480 / DIN 7504 K
A2 is only used for soft materials.
| d1 | 3.5 | 3.9 | 4.2 | 4.8 | 5.5 | 6.3 |
|---|---|---|---|---|---|---|
| d2 max | 8,3 | 8,3 | 8.8 | 10.5 | 11 | 13.5 |
| k max | 3,4 | 3,4 | 4.1 | 4.3 | 5.4 | 5.9 |
| s | 5,5 | 5,5 | 7 | 8 | 8 | 10 |
| Drill speed, rpm | - | - | - | - | - | - |
| Steel | 1800-2500 | 1800-2500 | 1800-2500 | 1800-2500 | 1000-1800 | 1000-1800 |
| Stainless steel | 1000-1500 | 1000-1500 | 1000-1500 | 1000-1500 | 600-1000 | 600-1000 |
| Max. torque, Nm | 2.8 | 3.8 | 4.7 | 6.9 | 10.4 | 16.9 |
| mag. sleeve/"/mm | 1/4” | 1/4” | 7 | 8 | 8 | 10 |
| L1 | 5 | 6 | 7 | 8 | 10 | 11 |
| For plate thickness | 0,7-2,25 | 0,7-2,4 | 1,75-3 | 1,75-4,4 | 1,75-5,25 | 2-6 |
