Thread rolling screw, pan head six lob drive DIN 7500CE
Stainless steel self-tapping screws are only suitable for soft materials such as aluminium or materials with HV <110

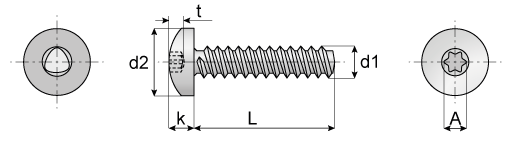

| d1 | M2 | M2,5 | M3 | M4 | M5 | M6 | M8 |
|---|---|---|---|---|---|---|---|
| d2 max | 4 | 5 | 6 | 8 | 10 | 12 | 16 |
| k max | 1.72 | 2.12 | 2.52 | 3.25 | 3.95 | 4.75 | 6.15 |
| t max | 0.8 | 1.2 | 1.3 | 1.8 | 2 | 2.4 | 3.3 |
| A | 1.8 | 2.4 | 2.8 | 3.9 | 4.5 | 5.6 | 6.8 |
| Bit No. | T6 | T8 | T10 | T20 | T25 | T30 | T40 |
