Lifting eye nuts, DIN 582
Lifting eye LH is an
internally threaded eye nut. We supply lifting eyes with finishes for all
needs, untreated to acid-resistant.
For lifting eyes with pin, see LT or LHT.

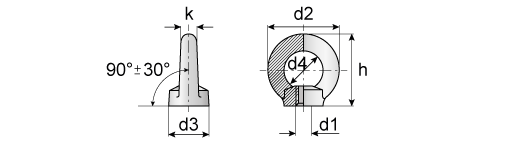

| d1 | M6 | M8 | M10 | M12 | M16 | M20 | M24 | M30 | M36 | M42 | M48 | M56 | M64 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| h | 36 | 36 | 45 | 53 | 62 | 71 | 90 | 109 | 128 | 147 | 168 | 187 | 208 |
| b | 13 | 13 | 17 | 20.5 | 27 | 30 | 36 | 45 | 54 | 63 | 68 | 78 | 90 |
| d2 | 36 | 36 | 45 | 54 | 63 | 72 | 90 | 108 | 126 | 144 | 166 | 184 | 206 |
| d3 | 20 | 20 | 25 | 30 | 35 | 40 | 50 | 65 | 75 | 85 | 100 | 110 | 120 |
| d4 | 20 | 20 | 25 | 30 | 35 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 |
| k | 8 | 8 | 10 | 12 | 14 | 16 | 20 | 24 | 28 | 32 | 38 | 42 | 48 |
