Cross sleeve
Our cross sleeve is both CE marked and Basta registrerad.
Hot-dip galvanization: ISO 10684: 2004
Mechanical properties: ISO 898-2:2022
Impact toughness: 27J at -20°C
Thread tolerance: 6H “ISO fit”
ID marked for enhanced traceability

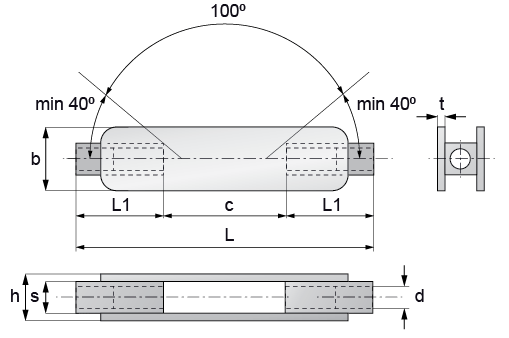

Minimum allowable connection angle: 40°
During installation, the rod must be screwed in along the entire length of the sleeve.
Minimum insertion length: 1.5 x d after adjusting the rod length.
For the design load of the tension rod system, refer to the handling sheet.
