NORD-LOCK washers
Nordlock® washers are supplied in pairs. Available up to 130 mm.
Area of use:
- Delta Protekt®, General steel applications
- Stainless, General stainless steel applications. Not chlorine/acid environments
- SMO 254®, Corrosive environment – chloride rich environments, offshore, pumps, heat exchangers, nuclear, food, medical, processing
For more information, visit Nordlock's website.

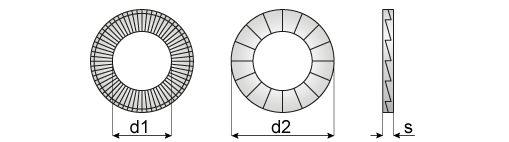

*Large outer dimension
| Skruvdiameter | M3 | M3,5 | M3,5* | M4 | M4* | M5 | M5* | M6 | M6* | 1/4” | 1/4”* | M8 | M8* | 3/8" | 3/8"* | M10 | M10* | 7/16" | M12 | M12* | 1/2" | 1/2"* | M14 | M14* | M16 | M16* | M18 | M18* | 3/4" | 3/4"* | M20 | M20* | M22 | M22* | M24 | M24* | 1" | 1"* | M27 | M27* | M30 | M30* | M33 | M33* | M36 | M36* | M39 | M42 | M45 | M48 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d1 | 3.4 | 3.9 | 3.9 | 4.4 | 4.4 | 5.4 | 5.4 | 6.5 | 6.5 | 7.2 | 7.2 | 8.7 | 8.7 | 10.3 | 10.3 | 10.7 | 10.7 | 11.4 | 13 | 13 | 13.5 | 13.5 | 15.2 | 15.2 | 17 | 17 | 19.5 | 19.5 | 20 | 20 | 21.4 | 21.4 | 23.4 | 23.4 | 25.3 | 25.3 | 27.9 | 27.9 | 28.4 | 28.4 | 31.4 | 31.4 | 34.4 | 34.4 | 37.4 | 37.4 | 40.4 | 43.2 | 46.2 | 49.6 |
| d2 | 7 | 7.6 | 9 | 7.6 | 9 | 9 | 10.8 | 10.8 | 13.5 | 11.5 | 13.5 | 13.5 | 16.6 | 16.6 | 21 | 16.6 | 21 | 25.4 | 19.5 | 25.4 | 17.5 | 25.4 | 23 | 30.7 | 25.4 | 30.7 | 29 | 34.5 | 30.7 | 39 | 30.7 | 39 | 34.5 | 42 | 39 | 48.5 | 39 | 48.5 | 42 | 48.5 | 47 | 55 | 48.5 | 58.5 | 55 | 63 | 58.5 | 63 | 70 | 75 |
