Hexagon nuts metric fine thread, DIN 934
Zinc-plated metric
fine threaded nut according to ISO 8673.
Dimensions from MF3 to MF48.

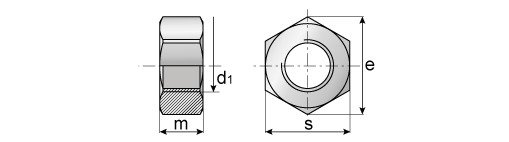

| d 1 | MF3x0,3* | MF4x0,5* | MF5x0,5* | MF6x0,75* | MF8x1 | MF10x1 | MF10x1,25 | MF12x1 | MF12x1,25 | MF12x1,5 | MF14x1,5 | MF16x1,5 | MF18x1,5 | MF20x1,5 | MF22x1,5 | MF24x2 | MF27x2 | MF30x2 | MF36x3 | MF42x3 | MF48x3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| e min | 6.01 | 7.66 | 8.79 | 11.05 | 14.38 | 18.9 | 18.9 | 21.1 | 21.1 | 21.1 | 24.49 | 26.75 | 29.56 | 32.95 | 35.03 | 39.55 | 45.2 | 50.85 | 60.79 | 72.09 | 82.6 |
| s | 5.5 | 7 | 8 | 10 | 13 | 17 | 17 | 19 | 19 | 19 | 22 | 24 | 27 | 30 | 32 | 36 | 41 | 46 | 55 | 65 | 75 |
| m max | 2.4 | 3.2 | 4 | 5 | 6.5 | 8 | 8 | 10 | 10 | 10 | 11 | 13 | 15 | 16 | 18 | 19 | 22 | 24 | 29 | 34 | 38 |
