NEO-DVSW
CE marked Double wall anchor NEO-DVSW for lifting sandwich elements. The double wall anchor has been developed for double walls, but also works in sandwich elements. The double wall anchor binds the outer and inner wall elements together. The anchor is embedded in two stages, creating a lifting opportunity (lifting point) between the two walls. The lift optimises the element’s centre of gravity, causing it to hang vertically. Does not require a lifting head.
BASTA registration for NEO-DVSW
One pack of NEO-DVSW contains:

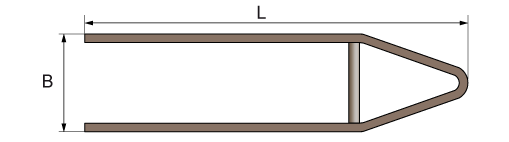

| Number/pack | Dimension x B | ||
| 450 st | 2,5x160 | 2,5x190 | |
| 225 st | 4,5x190 | ||
| 200 st | 4,5x210 | 4,5x230 | 6,3x190 |
| 150 st | 4,5x260 | 4,5x320 | |
| 135 st | 6,5x230 | ||
| 100 st | 4,5x140 | 4,5x160 | 4,5x290 |
| 50 st | 6,3x290 | ||
