NEO-DVSK
CE marked Double wall anchorNEO-DVSK for lifting double walls. The double wall anchor binds the outer and inner wall elements together. The anchor is embedded in two stages, creating a lifting opportunity (lifting point) between the two walls. The lift optimises the element’s centre of gravity, causing it to hang vertically. Does not require a lifting head.
“WLL” (Working Load Limit) indicates the maximum load that a lifting anchor or lifting head may be subjected to. For lifting capacity when the anchor is cast into concrete, refer to the respective handling sheet and consider the specified conditions.
BASTA registration for NEO-DVSK
One pack of NEO-DVSK contains:

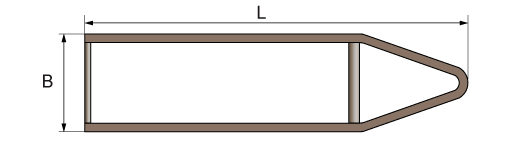

Number/pack | Dimension x B | ||||||
450 st | 2,5x100 | 2,5x120 | 2,5x140 | 2,5x160 | 4,5x140 | ||
350 st | 2,5x190 | 4,5x190 | |||||
300 st | 2,5x220 | 4,5x120 | 4,5x180 | 4,5x220 | |||
225 st | 4,5x130 | 4,5x140 | 4,5x160 | ||||
200 st | 2,5x290 | 2,5x340 | 4,5x110 | 4,5x260 | 4,5x220 | 4,5x320 | 6,3x150 |
100 st | 4,5x290 | 4,5x320 | 4,5x330 | 4,5x340 | |||
