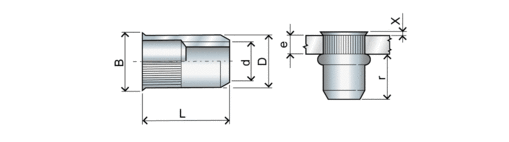

Steel threaded insert reduced head
Reduced head, larger external dimension PR
| d 6H | M3* | M4 | M5 | M6 | M8 |
|---|---|---|---|---|---|
| r max | 6.7 | 8 | 9.1 | 10.6 | 11.6 |
| hole Ø | 4.8 | 6.4 | 7.2 | 9.6 | 10.6 |
| D | 4.7 | 6.3 | 7.1 | 9.5 | 10.5 |
| B | 5.3 | 6.9 | 7.7 | 10.2 | 11.3 |
| x | 0.5 | 0.5 | 0.7 | 0.7 | 0.8 |
