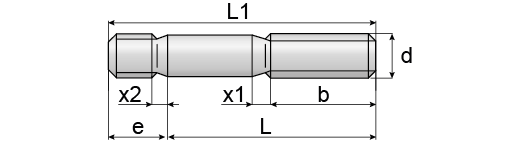

Stud bolts with threaded end 8.8, length ~1,25 d, DIN 939
e = material end,
thread Sk6
b = nut end, thread 6g
| d | M8 | M10 | M12 | M16 | M20 | M24 |
|---|---|---|---|---|---|---|
| Thread pitch, mm | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3 |
| e min | 10 | 12 | 15 | 20 | 25 | 30 |
| x1 | 3.2 | 3.8 | 4.3 | 5 | 6.3 | 7.5 |
| x2 | 1.6 | 1.9 | 2.2 | 2.5 | 3.2 | 3.8 |
